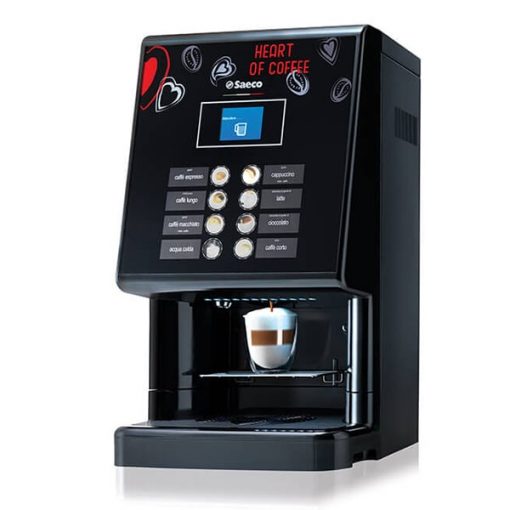

Phedra Evo is the perfect mix of innovative solutions and attractive design.
Available in 3 versions, Espresso, Cappuccino and TTT, in small spaces Phedra Evo is able to offer different technologies: 7 and 9 gram coffee groups, TTT coffee group, up to 3 soluble containers, fresh milk management, water supply connection and/or internal water tank (removable).
Its interface can be easily customised, modifying the beverage labels and the front graphics, and the dispensing area is largely illuminated with LED lighting technology.
Hot water is dispensed through an independent spout with an elegant chrome finish, which can also be moved next to the coffee dispenser, to have all the drinks available from a single point of exit.
The cup holder grid can be positioned at different heights, depending on the cup used or the desired beverage: 89 mm for small cups, 109 mm for medium cups or paper cups (8 oz), 185 mm for thermos or jugs.
Dimensions (w x h x d) 393 x 695 x 508 mm
Weight 36.5 kg
Power supply 220-240 V/50-60 Hz
Absorbed power 1550 W
Coffee boiler capacity 300 cc
Steam boiler no
Boiler material brass
Hot water solenoid valve yes
Water supply water supply or internal tank or independent tank
Water supply connection 3/4′ (1 – 8 bar)
Brewing unit 7 or 9 gr
Automatic cappuccinatore no
Vending grinder yes
Electronic pre-infusion yes
Possibility to use ground coffee no
Height-adjustable cup rest grid yes
Automatic cappuccinatore washing function no
Coffee bean container 1
Instant product container 2 – 3
Drip tray 1.8 l
Coffee grounds container 50
Coffee beans 1 kg
Instant coffee 0.33 kg
Fresh brew ground coffee no
Powdered milk 0.65 Kg
Chocolate 1.75 kg
Tea 1.5 kg
3.5′ colour TFT display yes
Number of selections 8
Number of preselections 2
Energy Class A+
